Description
STYLE
KALOC X6
VESA
200x200~600x400mm
Fits
40"-70"
Tilt
-5°/+8°
Swivel
60°/+60°
Rotation
±3°
Load Capacity
45.5kg/100lbs
Distance to wall
58-500mm
Descriptions:
* Fits most 40 to 70 inch screen flat panel TV. (Note: Supported screen size is provided as a reference only)
* Free hanging and stop and any up/down Tilt Angle between -5 and +8 degrees.
* Left-Right Swivel between 50 and 80 degrees.
* Heavy duty construction.
* With this tv wall mount bracket with full motion, you can be easy to fix, tilt, extend, fold and rotate your TV and any viewing angle whatever you wanted.
* Our standard Accessories enable you to extend free VESA mounting distance from 200x200mm to 600x400mm.
* The wall plate cover and cable hidden system looked more luxury and nice, also made the TV cable behind your TV neatly.
* Standard installation hardware screws included.

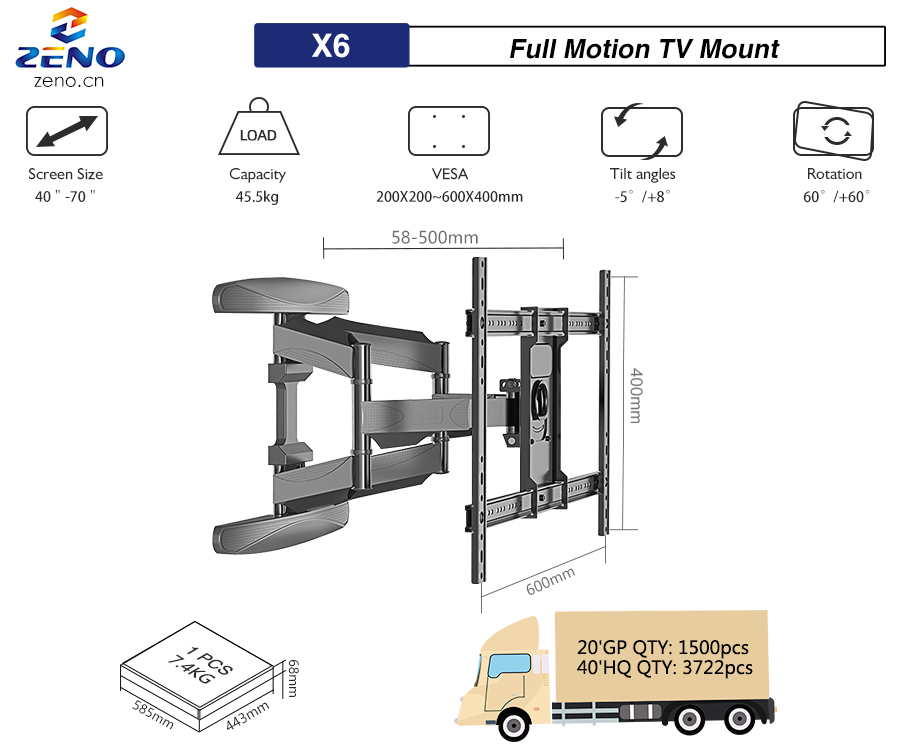

Specifications:
Brand: KALOC
Model: X6
Color: Black
Fits: most 40-70 Inch Flat Panel Display
VESA Compliance: 200x200~600x400mm
Load Capacity: 45.5kg
Tilt: +8°~ -5°
Left & Right Swivel: 50°-80°
Arm Extension: 58mm-500mm
Material: SPCC, Seamless Steel Tube and Plastic.
VESA: When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display. If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.
Package Includes:
1 x Tilt TV Wall Mount
1 x Some Installing Accessories
