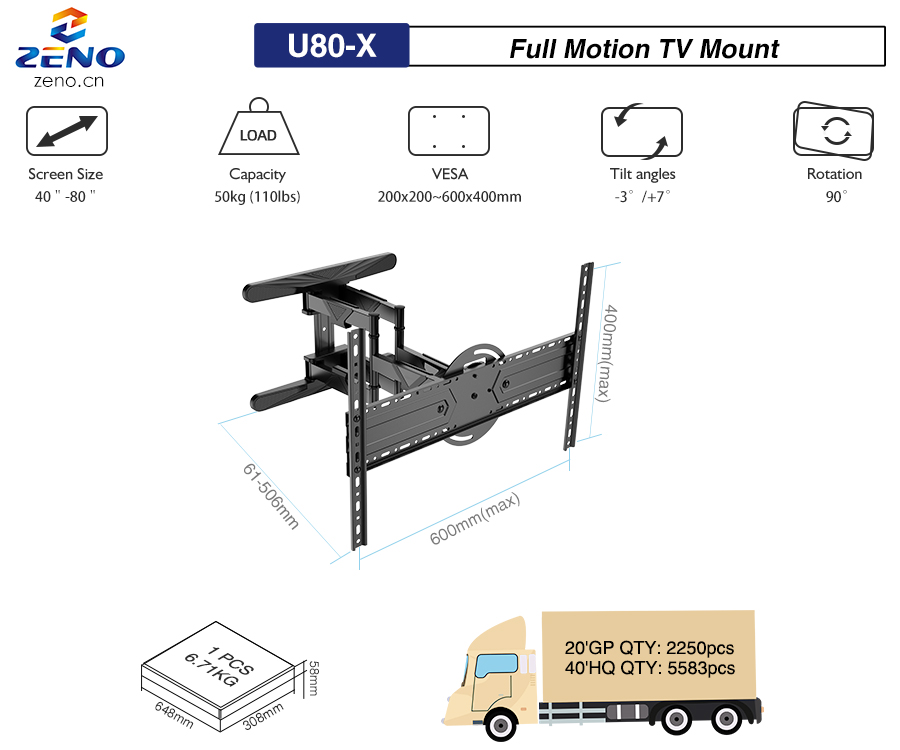

Description
STYLE
U80-X
VESA
200x200~600x400mm
Fits
40-80 inches
Tilt
+7°/-3°
Swivel
60°/+60°
Rotation
180°
Load Capacity
110lbs(50kg）
Distance to wall
61mm-506mm
Descriptions:
* Fits most 40 to 80 inches screen flat panel TV. (Note: Supported screen size is provided as a reference only)
* Free hanging and stop and any up/down Tilt Angle between +7°/-3°.
* Left-Right Swivel between 60 and +60 degrees.
* Heavy duty construction.
* With this tv mounting brackets, you can be easy to fix, tilt, extend, fold and rotate your TV and any viewing angle whatever you wanted.
* Our standard Accessories enable you to extend free VESA mounting distance from 200x200~600x400mm.
* The wall plate cover and cable hidden system looked more luxury and nice, also made the TV cable behind your TV neatly.
* Standard installation hardware screws included.
Specifications:
Brand: KALOC
Model: U80-X
Color: Black
Fit: 40-80 inches
VESA: 200x200~600x400mm
Wall distance: 61mm-506mm
Tilt: +7°/-3°
Max load capacity: 110lbs(50kg）
Material: SPCC, Seamless Steel Tube and Plastic.
VESA: When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display. If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.
Package Includes:
1 x Swivel TV Wall Mount
1 x Some Installing Accessories
